- Light source1 pc COB
- Lumen output230-245lm
- Color temperature2700k-6500k

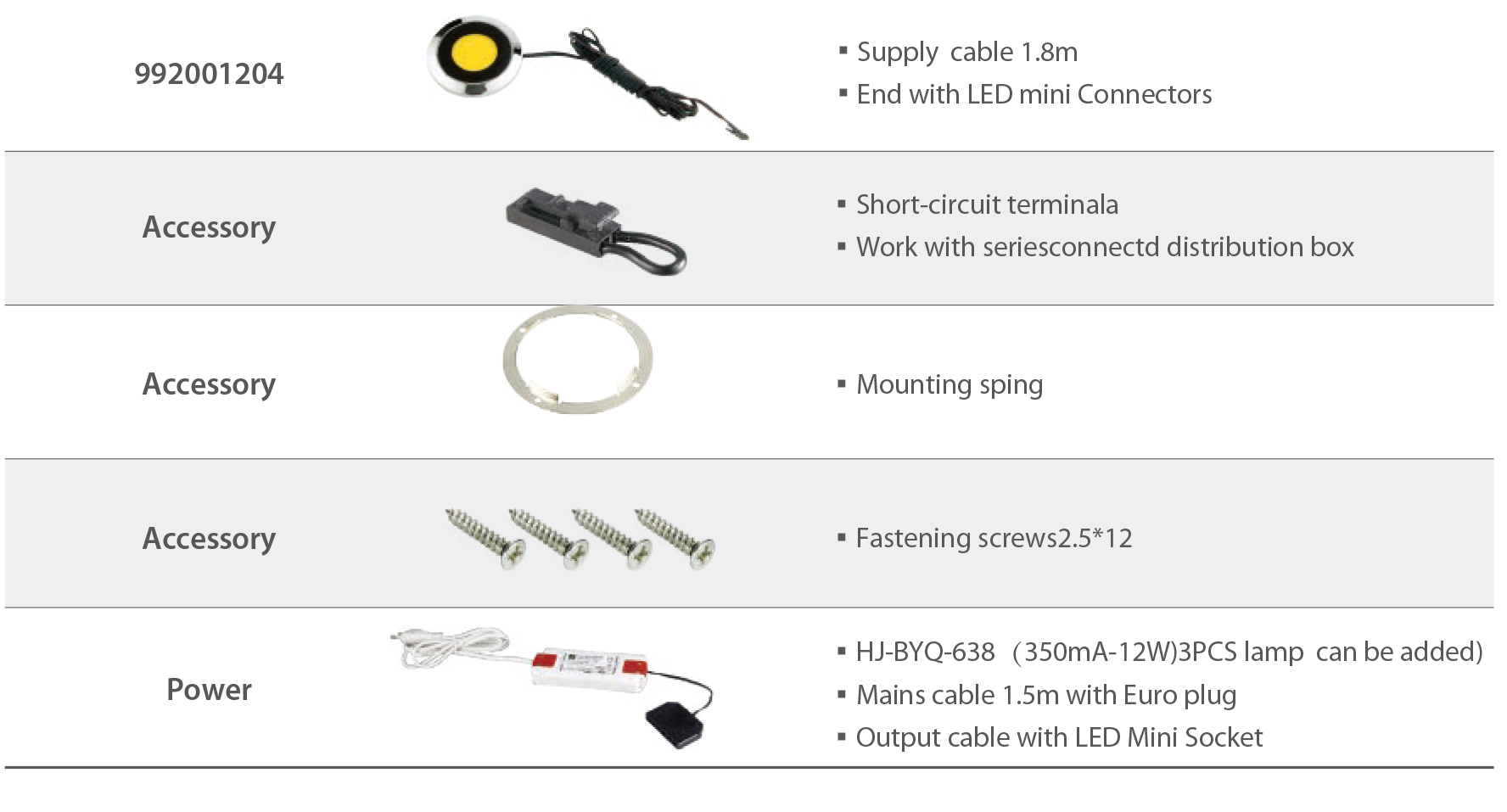

- 1 light with1.8m lead and end with a mini connector and mounting accessories
- Packagewhite box or custom
- CertificationCE, ETL, UL, GS, REACH, RoHS, SAA, VDE

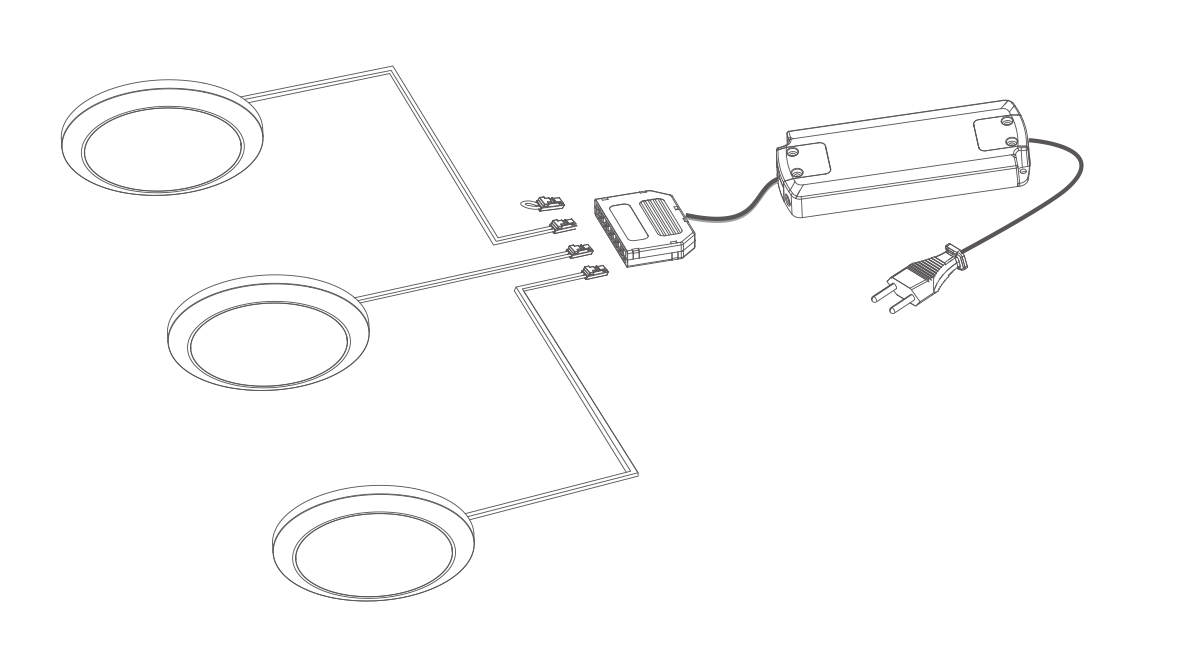

- Driving/Power supply optionalHJ-BYQ-638(350mA-12W)

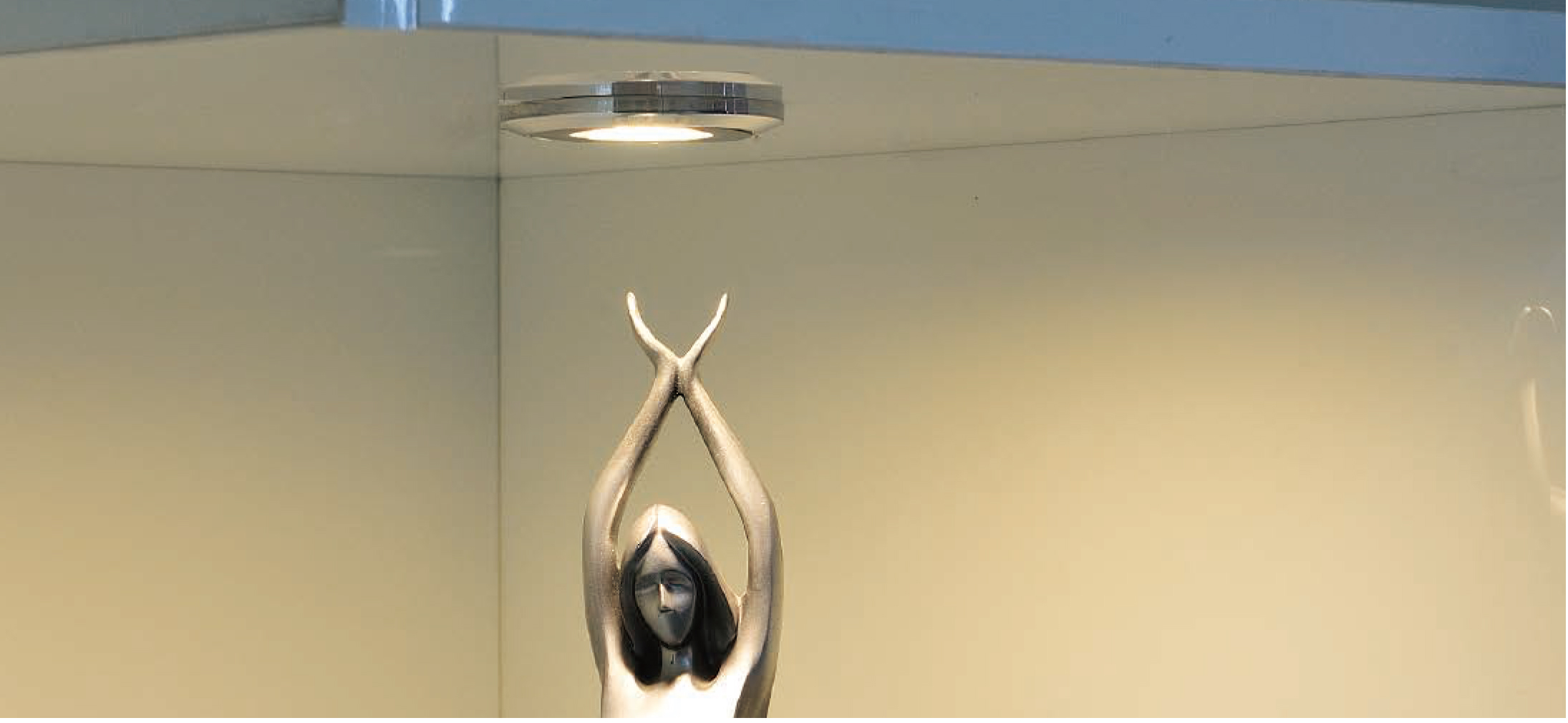

Puck lights have traditionally been popular options for under cabinet lighting. They are short, cylindrical lights (shaped like a hockey puck) with a diameter of 2-3 inches. Typically they use halogen or xenon bulbs, which provide about 20W worth of light.
The puck light fixtures will typically mount onto the underside of cabinets using small screws that are included with the product.
Many xenon and halogen puck lights operate on 120V AC directly, but others operate on 12V and will require a transformer to drop down the voltage. Keep in mind that these transformer devices can be a bit bulky and will require a bit of creativity to place in a hidden location under a cabinet.
Today, LED puck lights dominate the market, and offer comparable performance at a fraction of the energy consumption. LEDs do not operate on AC line voltage, but rather low voltage DC, so they will require a power supply to convert the line voltage. Similar to 12V halogen puck lights, you'll need to figure out a way to keep the power supply hidden in your cabinet somewhere, or deal with a "wall-wart" that plugs directly into the electrical outlet.
But because LED puck lights are so efficient, some can actually be battery operated. This can eliminate the need to run electrical wires, making installation a breeze, and eliminating the sloppy look of loose electrical wires.

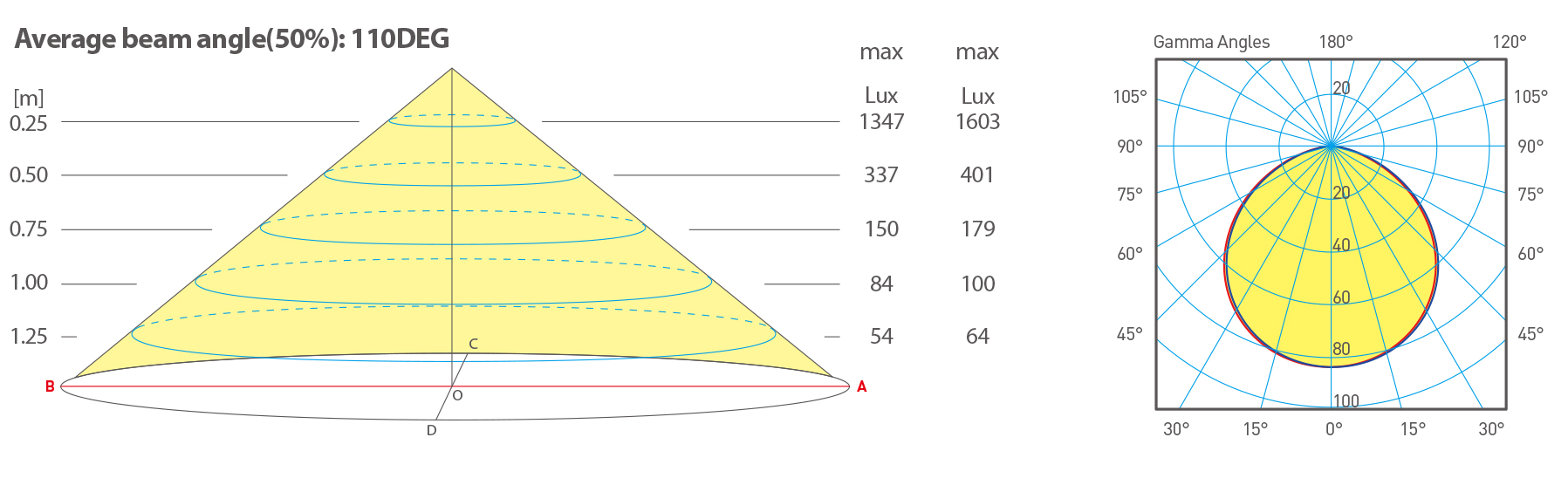

In terms of lighting effect, puck lights create a more dramatic look similar to spotlights, with a directed beam that casts a roughly triangular beam shape immediately under each puck light. Depending on your tastes and preferences, this may or may not be a desired look.
Also keep in mind that you will want the appropriate quantity of puck lights with appropriate spacing, since areas below the puck lights will be light "hotspots" while the areas in between will have less illumination. In general, you will likely want approximately 1-2 feet between puck lights, but if there is a shorter distance between the cabinets and kitchen counter, you may want to place them closer together, as the light will have less distance to "spread out."
How to compare Lumen, CCT, and CRI (Color Rendering Index) when buying flexi strip light?
Lumen is the measurement of brightness as perceived to the human eye. Because of incandescent lights, we are all accustomed to utilizing watts to measure the brightness of light. Today, we use lumen. Lumen is the most essential variable when choosing which LED strip light you need to consider. When comparing lumen outcome from strip to strip, note that there are various methods of claiming the very same point.
The questions you should be asking is "Lumens per what? Per foot, meter, or reel? How long is the reel?".
Various projects require a particular amount of brightness to accomplish a desired appearance. Our recommendations is to always go brighter than required and add a dimmer. Running your LEDs listed below their full power and brightness can additionally boost lifespan.
Warm Reminder: Be careful if the company does not state the lumen result. You will certainly have no concept what the brightness will certainly be until you acquire them.
Using Lumen as the only comparison can be challenging! Some brands over-power their LEDs to make them brighter. Regretfully, this will certainly make them fall short quicker and burn up. We under power our LED chips to ensure they last longer than ranked.
CCT - Color Temperature
CCT (Correlated Color Temperature) refers to the color temperature of light, determined in degrees Kelvin (K). The temperature score straight affects what the white light will certainly appear like; it varies from cool white to cozy white. For instance, a source of light that has a 2000-- 3000 K score is viewed as, what we call, cozy white light. Cozy white light looks very orange and/or yellow. When enhancing the degrees Kelvin, the color will alter from yellow to yellow-colored white to white and then a bluish white (which is the coolest white). Although the differing temperature levels have various names, it ought to not be confused with actual colors such as red, environment-friendly, or purple. CCT is specific to white light or rather, the color temperature level.
CRI - Color Rendering Index
Color making index (CRI) measures how colors are properly made under a source of light in contrast to all-natural sunlight. The index is gauged on a 0-100 range with 100 being an excellent rating of color accuracy, meaning the colors appear as they naturally would under untainted daylight. High CRI lighting is sought out all over, however is specifically valuable in. The bottom line: the greater the CRI, the better is the light source.This ranking is also a dimension in the lighting industry to aid recognize simplicity, hue discrimination, vividness, choice, color calling precision, and color harmony.
Established in 2007, Ningbo Technic lighting is a leader in the design, manufacturing, and the marketing of cabinet LED lighting, and its adaptive LED drives, dimmers, controllers, and other accessories, with a focus on a residential use and commercial display.
We are wholesale flexi strip light supplier&manufacturer, china oem flexi strip light factory, if you have any questions, just feel free to contact us.
1.May I have a sample order ?
Yes, sample order is available.
2. What about the lead time?
The lead time of sample is 5-7 days, the delivery time of order is 7-45 days.
3. Do you have any MOQ limit for order?
Yes, the MOQ limit is according to different product.
4. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is optional.
5. How to proceed an order?
Firstly let us know your requirements or application.
